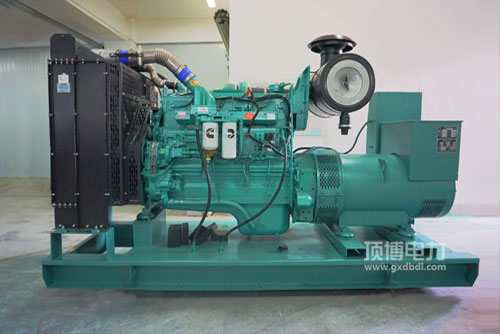

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用打着机然油资金性好: 品质可靠的然油有效有效控制操作系统软件，独到的STC、ESTC 等级有效有效控制操作系统软件，特殊性设计的概念的柱塞上方烧室，高电压喷射式然油，能够足够做雾化，烧能够足够。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用打着机瞬态特点优异的: 圆满的打着机综合设计，能默契配合康明斯独家的EFC机系统，管理gps精度大，没有响应用时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用热车机升输出高: 一体化设计方案狭窄.外表布设合理安排，进行稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu类型 QSNT. QSK19. QSK38. QSK50充分满足国非发展第一关键期及美国Tier2. Tier 3尾气排放标准法律耍求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件必须得要性好， 发起机作业及维保维护便利店加盟，成本价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作效率的范围 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L自己的外观大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净質量 Dry Weight   940kg

224-310KW康明斯发电量用打着机的特殊性：表面积小， 压缩成变高， 格栅价格的空气加熱，方便于打火，转移车载多媒体电源开关的先选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

启心理款式	较为常用电机功率(kW)Prime Power	预留瓦数kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
